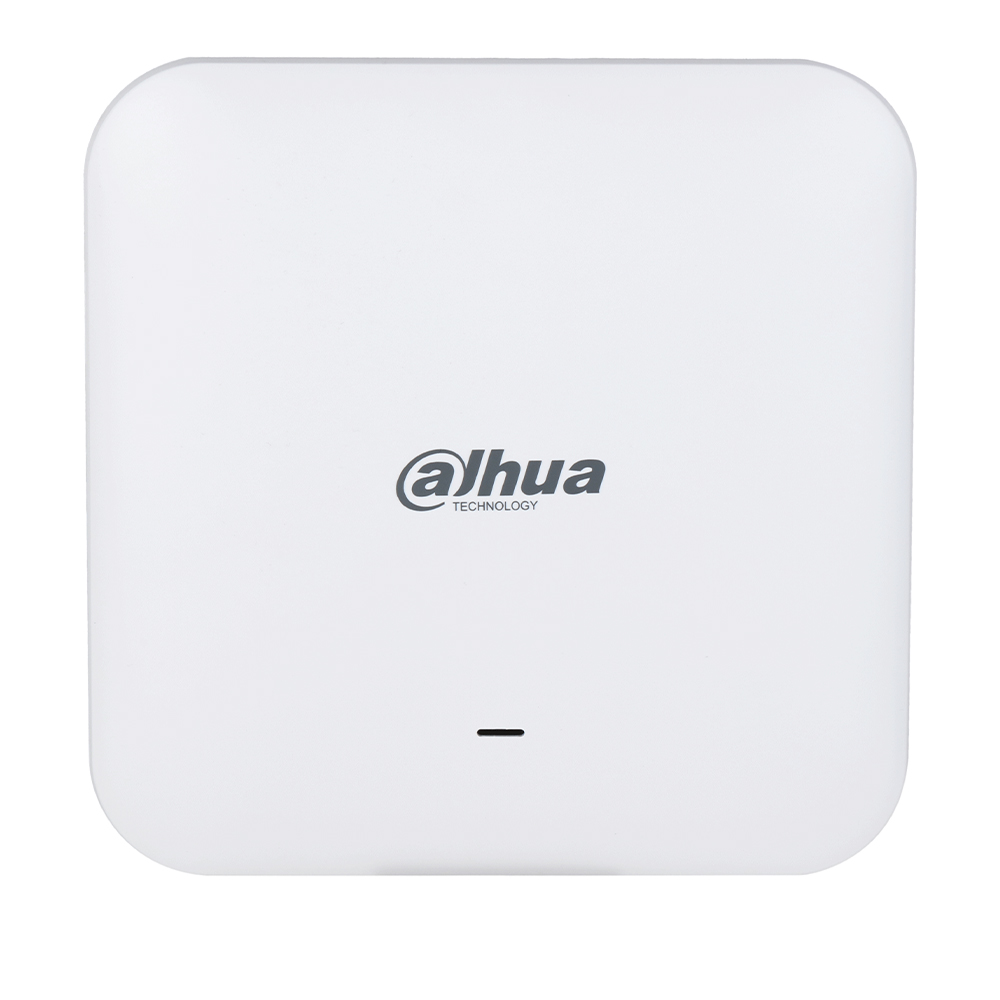

Acces Point Dual-band MU-MIMO, 5 GHz/2.4 GHz, Pana la 1.2Gbps - Dahua EAP5212-C

- Tehnologia MU-MIMO livrează o rețea wireless rapidă la care pot accesa simultan mai multe dispo- Vitez? wireless de p?n? la 1.2 Gbps.
- Suport? re?ele wireless duale concurrente.
- Ofer? roaming f?r? ?ntreruperi.

Hardware
Function Slots 1 x 10/100/1000 Mbps Base-T RJ-45
1 x 10/100/1000 Mbps Base-T RJ-45(WAN, PoE)
Power Consumption Full Load: 10 W
Memory
DDR: 128 MB
Flash: 8 MB
Indicator Light
SYS
WAN/PoE
LAN
Wireless Standard 2.4 GHz: IEEE 802.11b/g/n, 5 GHz: IEEE 802.11a/n/ac
Performance
Operating Frequency 2.4 GHz–2.484 GHz 5.150 GHz–5.850GHz
Wireless Transmission Rate 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps
Channel Width 20/40/80 MHz
Max. Output Power 20 dBm
Antenna Gain 2.4 GHz: 4.6 dBi 5 GHz: 4.0 dBi
Antenna Direction Angle 360°
Optimal Transmission
Distance 15 m (49.21 ft)
Function
Operating Mode FIT AP
FAT AP
Encryption Mode WPA-PSK/WPA2-PSK
Management and Log NTP; Syslog
Firmware Update Web update
AC remote update
Security Mechanism
SSID hiding
MAC authentication
IP-MAC binding
User isolation
Max allowed clients per AP
URL filtering
IP address filtering
MAC address filtering
Network Protocol HTTP; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; DDNS; Qos; UPnP; ICMP; PPPoE; IP Filter
MU-MIMO Yes
DFS Yes
DHCP Yes
NAT
NAT
Port Mapping
DMZ
QoS IP-based speed limit
DDNS Yes
Equipment Management Local WEB management
Rev 002.000 © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice.
The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Software:
Independent AP
Configure VLAN based on SSID
Auto channel
Power adjustment
5G Precedence
SSID extender
WiFi Timer
Pass through on VPN connection
Configure information restore/back up
General: Power Supply 12 VDC,1 A PoE (802.3 af)
Operating Temperature –20 °C to 45 °C (–4 °F to +113 °F)
Storage Temperature –40°C to 70 °C (–40 °F to +158 °F)
Operating Humidity 5%-95% (RH)
Gross Weight 0.71 kg (1.57 lb)
Net Weight 0.36 kg (0.79 lb)
Packaging Dimensions 243 mm × 235 mm × 76 mm
Product Dimensions 168 mm × 168 mm × 32 mm
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection Common mode: 2 kV
Differential mode: 0.5 kV
Installation In-ceiling Mount
Certifications CE: FCC
