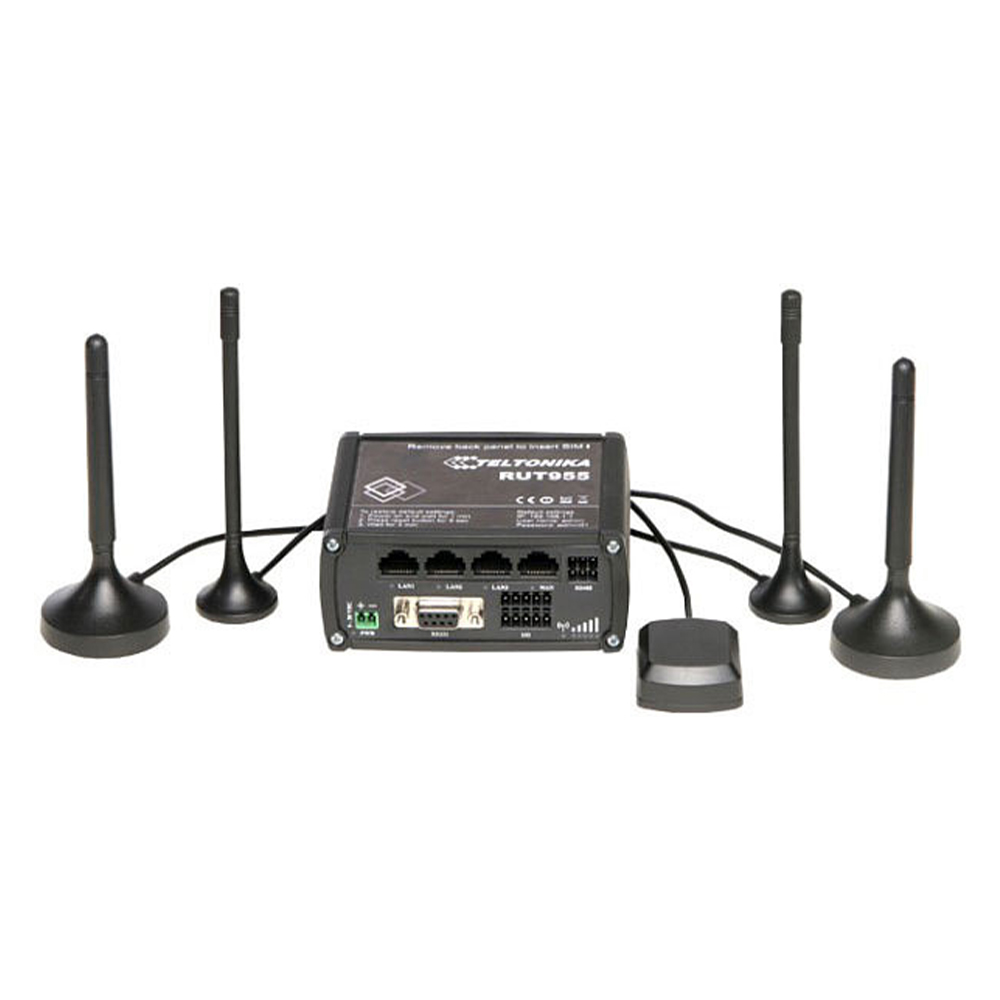

Router WiFi pentru internet mobil, tehnologie LTE 100 Mbps, GPS, RS232/RS485 - Teltonika RUT955

(0)

1472,00 Lei

Fișă produs Producător

Router WiFi pentru internet mobil, tehnologie LTE 100 Mbps, GPS, RS232/RS485 - Teltonika RUT955

0 review-uri

Cod produs: RUT955

1472,00 Lei (TVA inclus)

Garantie: 24 luni

In stoc

Livrare dupa confirmare

Transport gratuit Oriunde in Romania

Plata rate fara dobanda BT Star pana la 5 rate, restul bancilor pana la 6 rate

Achizitii SEAP Solicita postare pentru institutii publice

Descriere

Informatii despre Teltonika RUT955

Router WiFi pentru internet mobil, tehnologie LTE 100 Mbps, GPS, RS232/RS485, ie?ire releu, WiFi 802.11 b/g/n, suport VPN (OpenVPN, IPsec, L2TP), poate citi/trimite SMS-uri prin HTTP POST/GET

Dot?ri:

2× antene Wi-Fi
2× antene LTE
Anten? GPS: nu, se achizi?ioneaz? separat

LTE
FDD 800(B20)/850(B5)/900(B8)/1800(B3)/1900(B2)/2100(B1)/2600(B7) MHz
Up to 100 Mbps downlink speed
Up to 50 Mbps uplink speed
All bands with diversity

GSM/GPRS/EDGE
850/900/1800/1900 MHz
Power class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz
Power class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz
Power class E2 (0.5 W, 27 dBm) for EDGE 850/900 MHz
Power class E2 (0.4 W, 26 dBm) for EDGE 1800/1900 MHz
GSM: 14.4 kbps DL, 14.4 kbps UL
GPRS: 107 kbps DL, 85.6 kbps UL (class 33)
EDGE: 296 kbps DL, 236.8 kbps UL (class 33)

Ethernet
IEEE 802.3, IEEE 802.3u standards
3 x LAN 10/100 Mbps Ethernet ports
1 x WAN 10/100 Mbps Ethernet port
Supports auto MDI/MDIX

WiFi
IEEE 802.11b/g/n WiFi standards
2x2 MIMO
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401 – 2.495 GHz WiFi frequency range
20 dBm max WiFi TX power
SSID stealth mode and access control based on MAC address

* Imaginile, stocul si specificatiile tehnice ale produsului Teltonika RUT955 au caracter informativ si pot contine erori sau chiar accesorii ce nu sunt incluse in pachetul standard al produsului. Acestea pot fi schimbate fara instiintare prealabila si nu constituie obligativitate contractuala. Va stam oricand la dispozitie pentru eventuale clarificari.

Compara cu produse asemanatoare

Tabel comparativ generat automat pe baza categoriei si features.

Comparatie Teltonika RUT955 vs 3 alternative
Caracteristica	Teltonika RUT955 (acest produs)	MikroTik RBGPOE	Dahua PFS3005-5GT-L-V2	HikVision DS-3E0105D-O
Pret	1.472 lei	34 lei	48 lei	56 lei
Categorie	Echipamente retea	Echipamente retea	Echipamente retea	Echipamente retea
Subcategorie	Routere	Switch-uri si injectoare	Switch-uri si injectoare	Switch-uri si injectoare
Sub-subcategorie	2.4 GHz	Injectoare PoE	Switch-uri fara PoE	Switch-uri fara PoE
Garantie	24 luni	24 luni	24 luni	24 luni

Specificatii

Principalele caracteristici ale produsului Teltonika RUT955

Specificatii tehnice Teltonika RUT955
Mobil
Modul mobil	4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps
Comutator SIM	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status	Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Lista neagră/albă	Operator black/white list
Gestionare bandă	Band lock, Used band status display
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
PDN multiple (opțional)	Possibility to use different PDNs for multiple network access and services (not available in standard FW)
Wireless
Mod wireless	IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Securitate WiFi	WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID	SSID stealth mode and access control based on MAC address
Utilizatori WiFi	up to 100 simultaneous connections
Hotspot wireless	Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
Rețea
Rutare	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Protocoale de rețea	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPOE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
Suport passthrough VoIP	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Monitorizare conexiune	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules
DHCP	Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS	Supported >25 service providers, others can be configured manually
Backup rețea	VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
Echilibrare sarcină	Balance your internet traffic over multiple WAN connections
SSHFS (opțional)	Possibility to mount remote file system via SSH protocol (not available in standard FW)
Securitate
Autentificare	Pre-shared key, digital certificates, X.509 certificates
Firewall	Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Prevenire atacuri	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN	Port and tag based VLAN separation
Control cotă mobilă	Set up custom data limits for both SIM cards
Filtru WEB	Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Control acces	Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Ethernet
WAN	1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN	3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
VPN
OpenVPN	Multiple clients and server can be running simultaneously, 12 encryption methods
Criptare OpenVPN	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec	IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE	GRE tunnel
PPTP, L2TP	Client/Server services can run simultaneously
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
DMVPN	Method of building scalable IPsec VPNs
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN
WireGuard	WireGuard VPN client and server support
MODBUS TCP SLAVE
Interval ID	Respond to one ID in range [1;255] or any
Permite acces la distanță	Allow access through WAN
Registre personalizate	Modbus TCP custom register block requests, which read/write to a file inside the router, and can be used to extend Modbus TCP Slave functionality
MODBUS TCP MASTER
Funcții suportate	01, 02, 03, 04, 05, 06, 15, 16
Formate de date suportate	8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
MODBUS RTU MASTER (RS232)
Rate de baud suportate	From 300 to 115200
Funcții suportate	01, 02, 03, 04, 05, 06, 15, 16
Număr de biți de date	From 5 to 8
Număr de biți de stop	1 or 2
Paritate	None, Even, Odd
Flux	None, RTS/CTS, Xon/Xoff
Duplex	Full duplex
MODBUS RTU MASTER (RS485)
Rate de baud suportate	From 300 to 115200
Funcții suportate	01, 02, 03, 04, 05, 06, 15, 16
Număr de biți de date	8
Număr de biți de stop	1
Paritate	None, Even, Odd
Flux	None, Xon/Xoff
Duplex	Half duplex
MODBUS DATA TO SERVER
Protocol	HTTP(S), MQTT, Azure MQTT
MQTT GATEWAY
Gateway MQTT	Allows sending commands and receiving data from Modbus Master through MQTT broker
Monitorizare și Management
Interfață Web (WEB UI)	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
APEL	Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP trap
JSON-RPC	Management API over HTTP/HTTPS
MODBUS	MODBUS TCP status/control
RMS	Teltonika Remote Management System (RMS)
Platforme IoT
Clouds of things	Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx	Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity	Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
Azure IoT Hub	Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
Caracteristici sistem
CPU	Atheros Wasp, MIPS 74Kc, 550 MHz
RAM	128 MB, DDR2
Stocare FLASH	16 MB, SPI Flash
Firmware / Configurare
Interfață Web (WEB UI)	Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA	Update FW/configuration from server
RMS	Update FW/configuration for multiple devices
Păstrare setări	Update FW without losing current configuration
Personalizare Firmware
Sistem de operare	RutOS (OpenWrt based Linux OS)
Limbi suportate	Busybox shell, Lua, C, C++
Instrumente de dezvoltare	SDK package with build environment provided
Serial
RS232	DB9 connector, full RS232 (with RTS, CTS)
RS485	RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Funcții seriale	Console, Serial over IP, Modem, Modbus gateway, NTRIP Client
Localizare GPS
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordonate	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Software server	Supported server software TAVL, RMS
Geofencing	Configurable multiple geofence zones
Intrare/Ieșire
Intrare	1 x digital input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4 pin power connector)
Ieșire	1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
Evenimente	SMS, EMAIL, RMS
USB
Rata de date	USB 2.0
Aplicații	Samba share, USB-to-serial
Dispozitive externe	Possibility to connect external HDD, flash drive, additional modem, printer
Formate de stocare	FAT, FAT32, NTFS
Card SD
Dimensiune fizică	Micro SD
Aplicații	Samba share, Storage Memory Expansion, DLNA
Capacitate	Up to 64 GB
Formate de stocare	FAT32, NTFS, ext2, ext3, ext4
Alimentare
Conector	4 pin industrial DC power socket
Interval tensiune de intrare	9-30 VDC reverse polarity protection; surge protection >31 VDC 10us max
PoE (pasiv)	Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Consum de energie	< 2 W idle, < 7 W Max
Interfețe fizice (Porturi, LED-uri, Antene, Butoane, SIM)
Ethernet	4 x RJ45 ports, 10/100 Mbps
I/O	2 x Inputs and 2 x Outputs on 10 pin industrial socket, 1 x Digital input and 1 x Digital output on 4 pin power connector (available from HW revision 1600)
LED-uri de stare	1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Alimentare	1 x 4 pin power connector
Intrare/Ieșire	1x 10 pin industrial socket for inputs/outputs
Antene	2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB	1 x USB A port for external devices
Card SD	Micro SD card slot
RS232	1 x DB9 socket
RS485	1 x 6 pin industrial socket
Reset	Reboot/User default reset/Factory reset button
Specificații fizice
Material carcasă	Aluminium housing, plastic panels
Dimensiuni (L x Î x A)	110 x 50 x 100 mm
Greutate	287 g
Opțiuni de montare	DIN rail (can be mounted on two sides), flat surface placement
Mediu de operare
Temperatura de operare	-40 °C to 75 °C
Umiditate de operare	10% to 90% non-condensing
Clasificare protecție la intrare (IP)	IP30
Reglementări și Aprobări de Tip
Reglementare	ECE R10 (E-mark), ECE R118
Operator	AT&T, Verizon
Imunitate EMI
Standarde	Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0, FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
ESD	EN61000-4-2:2009
RS	EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Imunitate la supratensiune (linie de alimentare AC)	EN 61000-4-5:2006
Imunitate la supratensiune (porturi Ethernet)	EN 61000-4-5:2014, clause 7.1 of ITU-T K21
Tranzienți și supratensiuni	ISO 7632-2:2004
CS	EN 61000-4-6:2009
DIP	EN 61000-4-11:2004
RF
Standarde	EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1, EN 303 413 V1.1.0, AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017, FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017), RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1
Siguranță
Standarde	IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, AS/NZS 60950.1:2015, EN 50665:2017, EN 62311:2008, FCC 47 CFR Part 1 1.1310, RSS-102 Issue 5 (2015)
Mediu
Protecție la intrare	LST EN 60529:1999+A1+AC:2002
Vibrații	Class guideline-DNVGL-CG-0339:2016, EN 60068-2-6:2008
Specificații radio
Tehnologii RF	2G, 3G, 4G, WiFi, GNSS
Putere RF maximă	33 dBm@GSM, 24 dBm@WCDMA, 23 dBm@LTE, 20 dBm@ WiFi
Specificații accesorii incluse
Adaptor de alimentare	Input: 0.4A@100-240VAC, Output: 9VDC, 1A, 4-pin plug
Antenă mobilă	698~960/1710~2690 MHz, 50 Ω, VSWR<3, gain** 3 dBi, omnidirectional, SMA male connector
Antenă WiFi	2400~2483.5 MHz, 50 Ω, VSWR<2, gain** 5 dBi, omnidirectional, RP-SMA male connector
Antenă GNSS	1575.42~1602 MHz, 2.2~5 VDC, VSWR<1.5, gain** 28 dB (typ.), RHCP polarization, SMA male connector

⚠ Fișa tehnică acoperă seria RUT955; unele specificații pot diferi între variantele de produs.* Specificatiile tehnice ale produsului Teltonika RUT955 au caracter informativ.

Opinii clienti

0.0

0 recenzii

Nu exista opinii despre acest produs! Fii tu primul care ii acorda o nota!

Intrebari frecvente

Ce garantie are Teltonika RUT955?

Teltonika RUT955 beneficiaza de 24 luni garantie oferita de e-Camere.ro, cu suport tehnic gratuit pe toata durata garantiei.

Unde pot gasi specificatiile complete ale Teltonika RUT955?

Specificatiile complete ale Teltonika RUT955 sunt disponibile pe pagina produsului de pe e-Camere.ro, in sectiunea Specificatii. De asemenea, puteti descarca prospectul tehnic PDF din sectiunea Prospect.
