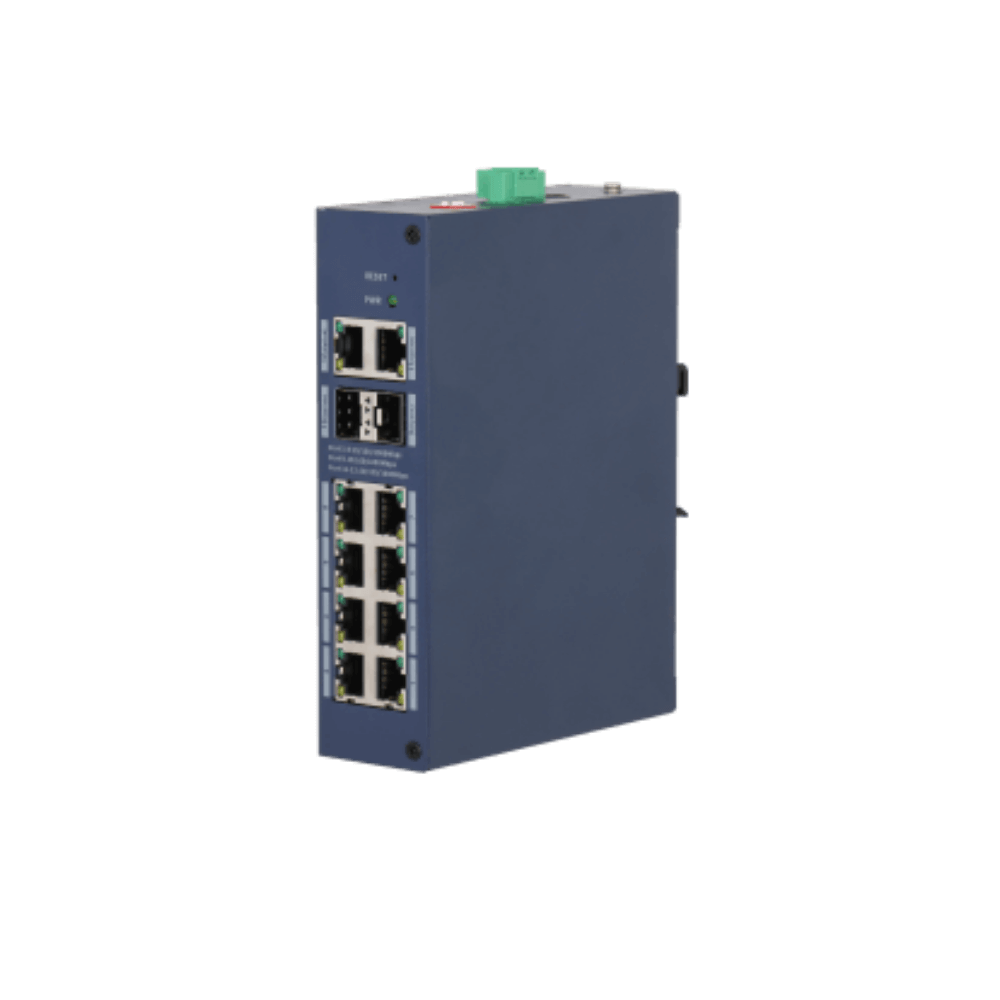

Switch Gigabit 12 porturi, 2 SFP + 2 Uplink RJ45, cu management, 24 Gbps - Dahua CHS4212-8GT

(0)

718,8 Lei

Fișă produs Producător

Switch Gigabit 12 porturi, 2 SFP + 2 Uplink RJ45, cu management, 24 Gbps - Dahua CHS4212-8GT

0 review-uri

Cod produs: CHS4212-8GT

718,80 Lei (TVA inclus)

Garantie: 24 luni

La comanda

Livrare in minim 30 zile

Transport gratuit Oriunde in Romania

Plata rate fara dobanda BT Star pana la 5 rate, restul bancilor pana la 6 rate

Achizitii SEAP Solicita postare pentru institutii publice

Descriere

Informatii despre Dahua CHS4212-8GT

Features managed mode. Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab，IEEE802.3z, IEEE802.3az and IEEE802.3ad standards. Supports network topology visualization. Supports mobile management by app. Supports one-stop maintenance. With its full metal design and dust-proof enclosure, it can be used in a wide range of temperatures. Supports desktop mount and DIN rail mount.

* Imaginile, stocul si specificatiile tehnice ale produsului Dahua CHS4212-8GT au caracter informativ si pot contine erori sau chiar accesorii ce nu sunt incluse in pachetul standard al produsului. Acestea pot fi schimbate fara instiintare prealabila si nu constituie obligativitate contractuala. Va stam oricand la dispozitie pentru eventuale clarificari.

Compara cu produse asemanatoare

Tabel comparativ generat automat pe baza categoriei si features.

Comparatie Dahua CHS4212-8GT vs 3 alternative
Caracteristica	Dahua CHS4212-8GT (acest produs)	Dahua PFS3005-5GT-L-V2	Dahua PFS3008-8GT-L-V2	Dahua LR1002-1ET-V3
Pret	719 lei	48 lei	94 lei	133 lei
Categorie	Echipamente retea	Echipamente retea	Echipamente retea	Echipamente retea
Subcategorie	Switch-uri si injectoare	Switch-uri si injectoare	Switch-uri si injectoare	Switch-uri si injectoare
Garantie	24 luni	24 luni	36 luni	24 luni
Sub-subcategorie	—	Switch-uri fara PoE	Switch-uri fara PoE	Convertoare PoE

Specificatii

Principalele caracteristici ale produsului Dahua CHS4212-8GT

Specificatii tehnice Dahua CHS4212-8GT
Basic
Layer	Layer 2
Switching Capacity	24 Gbps
Packet Forwarding Rate	17.856 Mpps
Description of Function Slots	Port 1-8: 8 x RJ-45 10/100/1000 Mbps; Port 9-10: 2 x SFP 100/1000 Mbps (uplink); Port 11-12: 2 x RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature	-30 °C to +65 °C (-22 °F to +149 °F)
Operating Humidity	10%-90% (RH), non-condensing
Protection	IP30; IK06
Storage Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity	5%-95% (RH), non-condensing
Power Supply	External dual power supply (terminal block and DC): 12 VDC, 1 A
Power Consumption	Idling: 2 W; Full load: 7 W
Statics Protection	Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection	Common mode: 4 kV; Differential mode: 2 kV
Net Weight	0.636 kg (1.40 lb)
Gross Weight	0.91 kg (2.01 lb)
Product Dimensions	171.8 mm x 139.4 mm x 42 mm (6.76" x 5.49" x 1.65") (L x W x H)
Packaging Dimensions	299 mm x 164 mm x 72 mm (11.77" x 6.46" x 2.83") (L × W × H)
Casing Material	Iron
Installation	DIN rail mount; desktop mount
Certifications
Certifications	CE
PoE
PoE	No
Hardware
DIP Switch	Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default. Port isolation: Prevents traffic from being sent between ports 1-8, but allows ports 1-8 to send its traffic to the uplink ports 9-12. These uplink ports can also send their traffic to 1-8. Storm control: Limits the speed of all the ports to 5 Mbps.
Reset Button	1
Performance
MTBF	1,346,685 hours
Packet Buffer Size	8.4 Mbit
Jumbo Frame	12288 Byte
MAC Table Size	8K
Communication Standard
Communication Standard	IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
VLAN
VLAN Number	32
VLAN Function	Port-based VLAN
Dynamic ARP
Dynamic ARP	10
Feature
Ethernet Loop Protection	STP; RSTP
Link Aggregation	Static Aggregation
Port Feature
Port Feature	IEEE 802.3x Flow Control; Unknown Unicast Suppression; Multicast Storm Control; Broadcast Storm Control; MAC+PORT Binding; Port Self-loop Detection; Ports Self-loop Detection
Mirror
Mirror	Local Port Mirroring
Reliability
Reliability	LLDP
DHCP Function
DHCP Function	DHCP Client
Security
Security	Port Isolation; IP/Port/MAC Binding
Equipment Management
Equipment Management	Web Management; Cloud Management; Logs; System Logs; Fault Alarm

⚠ Fisa tehnica acopera seria DH-CHS4212-8GT; unele specificatii pot diferi intre variante.* Specificatiile tehnice ale produsului Dahua CHS4212-8GT au caracter informativ.
